CHROMABEAMS ORBIT SERIES

RGB LED TENNIS COURT LIGHTS

200 ~ 500W LED illumination
Up to 60,000+ lumens delivered
CCT option from 1800K to 7000K
Direct DMX/RDM controllability to each fixture
Glare-reducing, patented single glass optic for even field lighting
High 90+ CRI color fidelity option
Built-in over temperature protection
IP-66 weather-tight housing & system
120,000+ hour rated LEDs
IK-10 rated
IP-67 proprietary power supply with surge protection

100% DURABILITY DRIVERS

Sportsbeams meticulously designs, engineers, and assists in fabricating our robust, safe drivers, housed in custom-made, durable die-cast aluminum.

MILITARY-GRADE COOLING

The distinctive Chromabeams™ color technology utilized in our
Orbit Series allows for the provision of tunable sports white light,
alongside a full spectrum of RGB lights.

SINGLE-GLASS OPTIC LENS

Grouping individual LEDs closely, while omitting plastic lenses, effectively eradicates glare and emits the smoothest output possible.

LIGHT UP ANY INDOOR & OUTDOOR FACILITY WITH OUR LED SPORTS LIGHTING

Designed to go beyond traditional sports lighting, the Chromabeams Orbit Series combines professional-grade tennis illumination with full RGBAW color control for unmatched versatility. In standard white-light mode, Orbit delivers the same clear, uniform visibility required for accurate ball tracking, fast reactions, and consistent competitive play. When color is engaged, it transforms courts for events, training sessions, branding, and special occasions. From a single backyard court to schools, municipalities, clubs, and large multi-court complexes, Orbit is built for indoor and outdoor performance—scaling effortlessly while adding a new dimension of visual impact to every facility.

TYPICAL APPLICATIONS:

Backyard Tennis Courts
Pickleball Courts
Municipal Courts

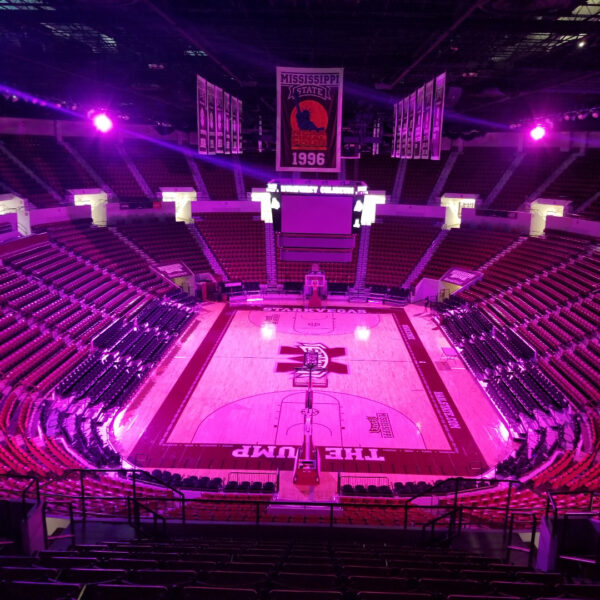

Indoor Arenas
Stadium Egress Lighting
Auditoriums
Church and Building Lighting
Ski & Winter Sports Resort Lighting
High Mast
And More

GLARE-FREE

BROADCAST QUALITY

NO PLASTIC LENSES

OPTIMAL THERMAL DESIGN

ADVANCED INTELLIGENCE

TECHNICAL SPECIFICATIONS

Chromabeams Orbit Series

LIGHT & OPTICS

-LUMEN OUTPUT RANGE
+,208 ~ 60,965
-LUMEN-TO-WATT RANGE
+~ 140 LM/W
-CRI/TLC OPTIONS
+/75, 90/90
-EFFECTIV CCT RANGE
+K ~ 7000K
-NEMA OPTIONS
+/5/6/7

ELECTRICAL

-SYSTEM POWER
+W ~ 500W
-FREQUENCY RANGE
+~66 Hz
-INPUT VOLTAGE
+V ~ 277V
-DC VOLTAGE
+V
-CURRENT RANGE
+.0A ~ 5.0A MAX @100VAC
-POWER FACTOR
+.99 @ 115V / 0.95 @ 277V
-THD
+<20%
-INRUSH CURRENT
+<35A ~ 50A
-ELECTRICAL CERTIFICATIONS
+FCC, CE, ETL, IK08, CB, KC, UL 924
-SURGE PROTECTION
+L-L 6kV ~ L-PE 10k
-OVER TEMPERATURE PROTECTION
+AUTOMATIC RECOVERY
-OVER VOLTAGE PROTECTION
+RECOVERY AFTER POWER CYCLE
-OVER LOAD PROTECTION
+AUTOMATIC RECOVERY

CONSTRUCTION

-OPERATING TEMPERATURE RANGE
+-40°C TO +40°C
-USAGE ENVIRONMENTS
+INDOOR, OUTDOOR
-MOUNTING OPTIONS
+PEDESTAL, PENDANT
-ENVIRONMENTAL CERTIFICATIONS
+RoHS, FCC, SALT SPRAY
-VIBRATION
+ANSI C136.31-2010 3G
-EFFECTIVE PROJECTED AREA (EPA)
+.28 (FT²) with or without visor
-APPROXIMATE WEIGHT
+~ 29 LBS

NOTES:

(1) Specifications are subject to change without notice (2) Values are +/- 5%	(3) Values are +/- 4% when fixture is operated at 25°C ambient (4) Weight may vary depending on mounting bracket

(1) Specifications are subject to change without notice
(2) Values are +/- 5%

(3) Values are +/- 4% when fixture is operated at 25°C ambient
(4) Weight may vary depending on mounting bracket

This fixture is covered by one or more of the certifications listed
