Description

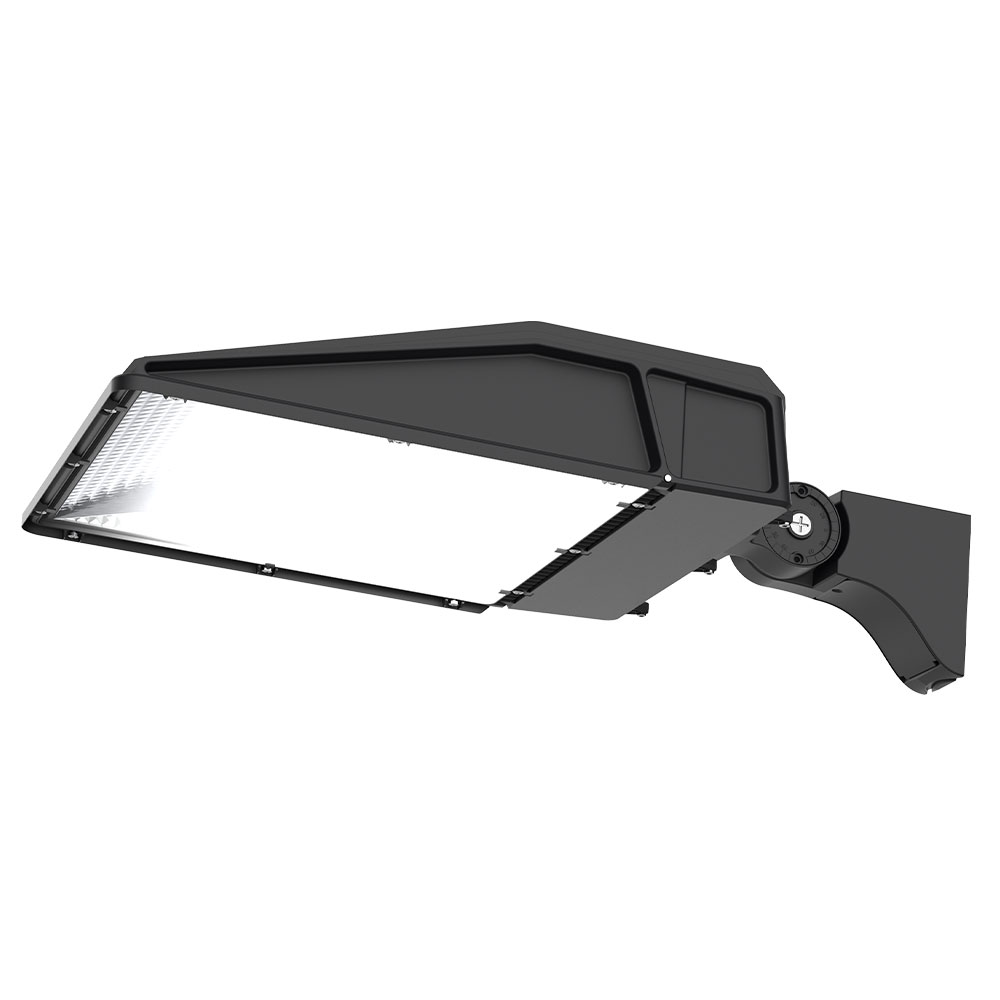

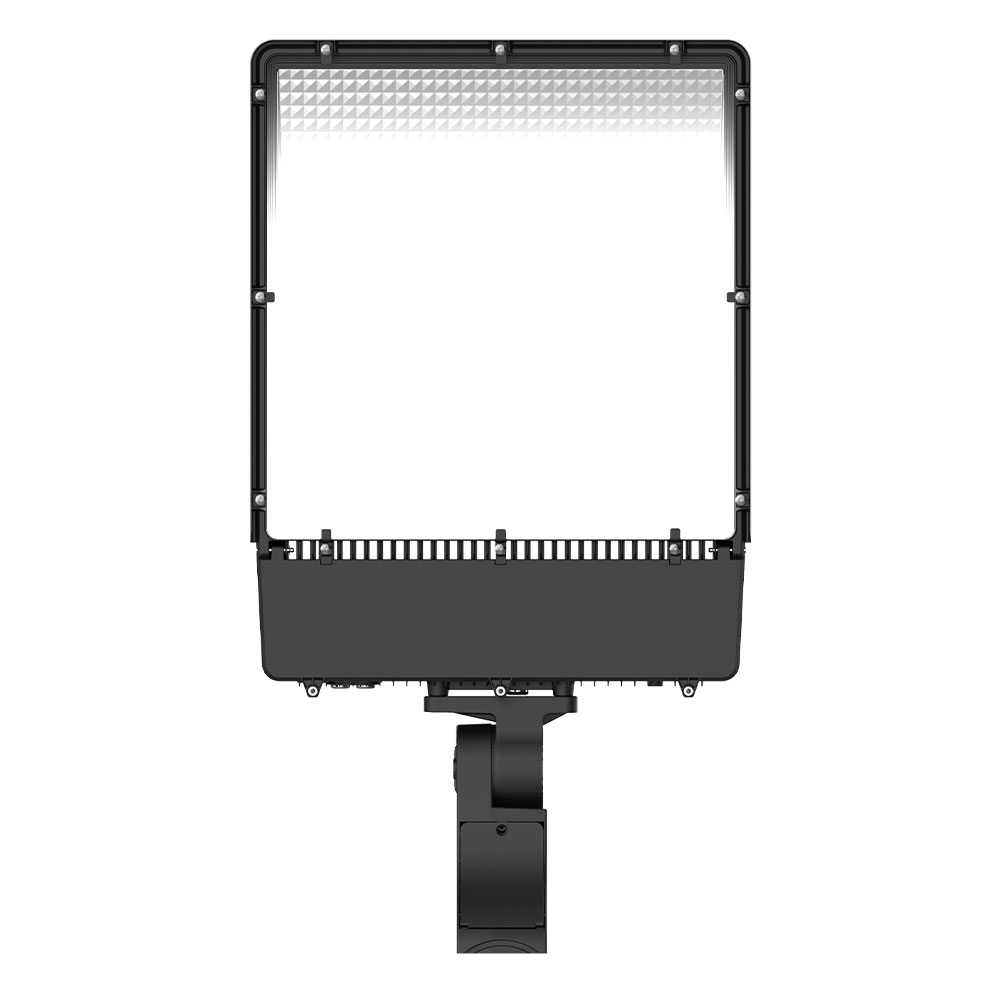

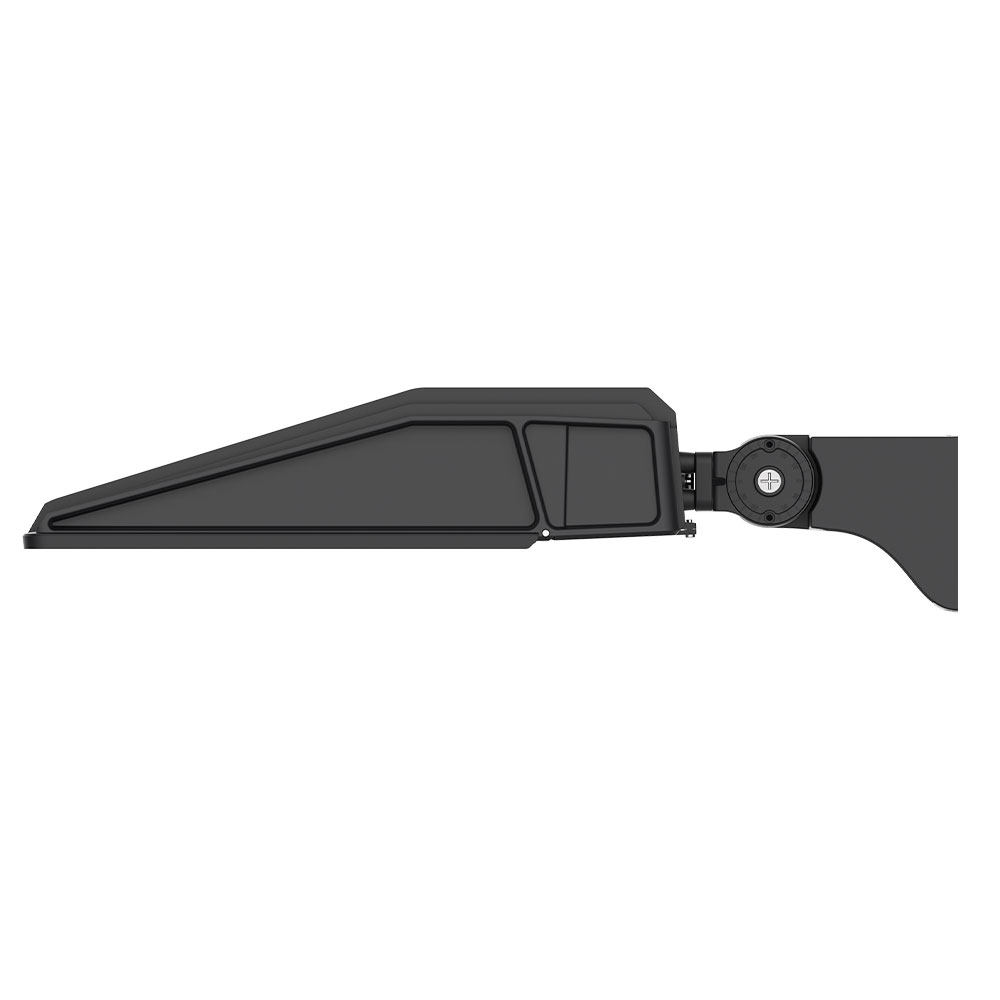

The Comet Series LED Court Light is a high-output LED sports lighting solution designed for tennis courts and multi-purpose outdoor facilities that require consistent illumination, glare control, and long-term reliability. Its low-profile housing, precision optical system, and advanced thermal management deliver bright, even light across the playing surface while minimizing glare and light spill.
Available in 500-watts, the Comet Series provides up to 66,000 lumens of output to support clear visibility and uniform court coverage. A single-glass optical design ensures stable light distribution without the use of plastic lenses, helping maintain performance over time in outdoor environments.

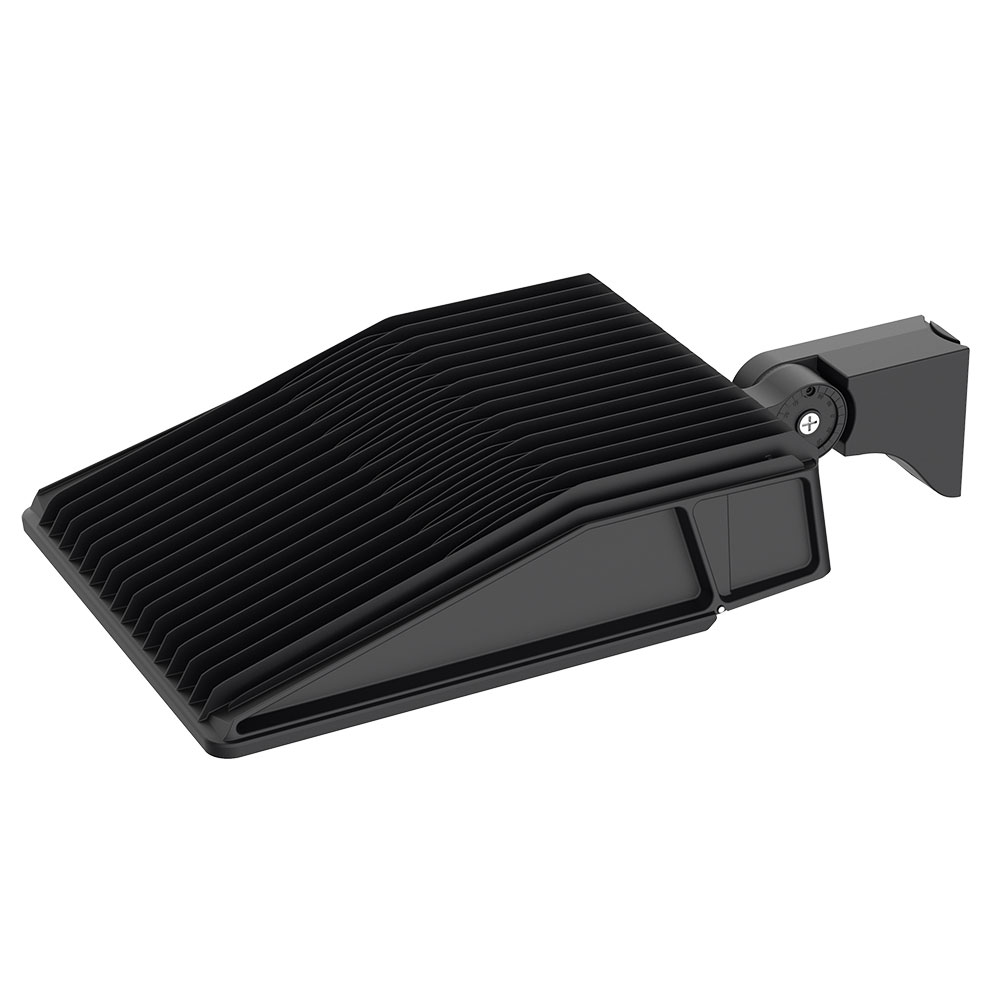

The fixture is rated for both indoor and outdoor use with an IP66 weather-tight enclosure and is engineered for durability in demanding conditions. Long-life LED technology is rated for over 120,000 hours of operation, reducing maintenance requirements over the system’s lifespan. Built-in thermal and electrical protections include safeguards against over-temperature, over-voltage, overload, and electrical surges.
The Comet Series supports multiple mounting configurations, including direct pole mount, tenon mount, and underslung installations, making it suitable for new installations, retrofits, and facility upgrades. It is commonly used for tennis courts, pickleball courts, multi-sport outdoor courts, parking areas, perimeter lighting, and high-mast or wall-wash applications. Each fixture is backed by a standard 10-year manufacturer warranty.
Specifications
Our fixtures are engineered to meet the performance standards demanded by serious players, clubs, and municipalities. Every specification reflects a commitment to output consistency, color accuracy, durability, and long-term reliability—unlike low-cost alternatives that often sacrifice component quality, thermal management, and optical performance to reduce price.
COMET 500W Specifications1
| Light & Optics |
| Lumen Output |
62,100 |
| Lumen to Watt |
124 lm/W |
| CRI/TLCI2 |
80 |
| Effective CCT |
5000K |
| Electrical |
| System Power |
500W |
| Frequency |
47~66 Hz |
| Input Voltage |
90V ~ 305V |
| DC Voltage |
24V |
| Current Range |
4.2A MAX |
| Power Factor |
0.95 @ 115V / 0.94 @ 277V |
| THD |
<20% |
| Inrush Current |
<60A |
| Electrical Certifications |
FCC, CQC, ETL, IK08, CB, KC, UL 924 |
| Surge Protection |
L-L 6kV ~ L-PE 6kV |
| Over Temperature Protection |
Automatic Recovery |
| Over Voltage Protection |
Recovery After Power Cycle |
| Over Load Protection |
Autmatic Recovery |
| Construction |
| Operating Tempurature Range3 |
-40°C to +40°C |
| Usage Environments |
Indoor, Outdoor |
| Mounting Options |
Pedestal, Direct Pole Mount |
| Environmental Certifications |
ROHS, FCC, Salt Spray (MIL-STD-810) |
| Vibration |
ANSI C136.31-2010 3G |
| Effective Projected Area (EPA) |
.45 with or without visor |
| Impact Rating with Cage |
IK-10 |
| Appriximate Weight4 |
22lbs |
Notes:
- Specifications are subject to change without notice
- Values are +/-5%
- Values are +/- 4% when fixture is operated at 25°C ambient
- Weight may vary depending on mounting bracket

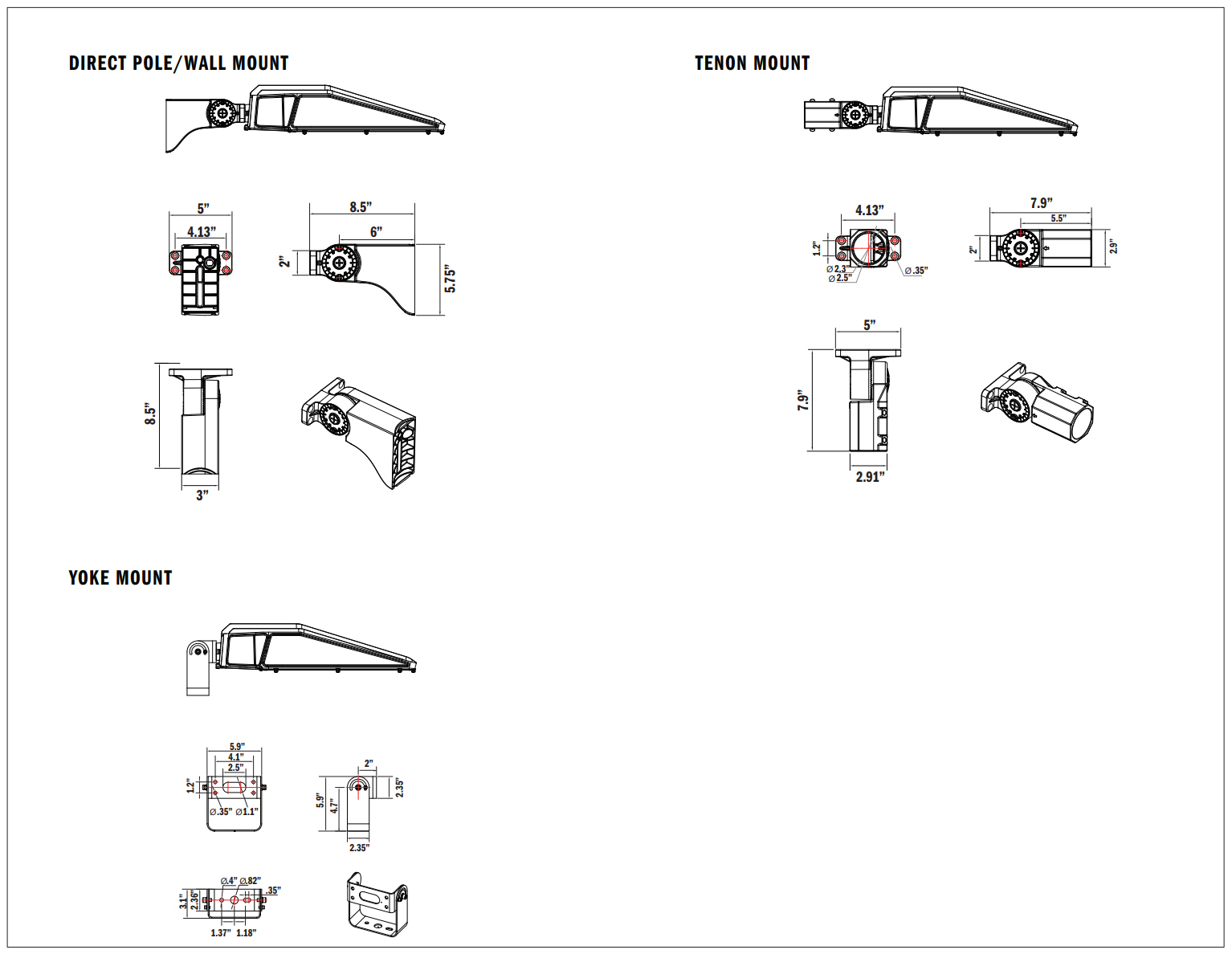

Mounting Options
Each Sportsbeams Comet Series Light Includes the Following Mounts
Note: While poles are not included, every fixture includes mounting hardware kits engineered for multiple mounting configurations.
